Structural Tube & Pipe

Southern Steel Supplies stocks a wide range of Structural Tube & Pipe including Square Hollow Sections (SHS), Rectangular Hollow Sections (RHS), Circular Hollow Sections (CHS), Firepipe and Large Structural Pipe. Southern Steel Supplies’ tubular and pipe steel products can be used across a wide range of applications from general construction to major mining and industry infrastructure. Available in an assortment of sizes, Southern Steel Supplies’ tube and pipe range are all manufactured to the relevant Australian Standards.

DOWNLOAD COMPLETE REFERENCE GUIDE

Southern Steel Supplies - Blue Steel Square Hollow Sections

Square Hollow Sections - SHS

Painted Square Hollow Sections (SHS) are high-strength cold-formed hollow steel square sections that are primer painted for protection during storage and handling. SHS is often used when strength and functionality is essential in structural and mechanical applications, more commonly used in the manufacturing of frames, residential projects for gates and posts, as well as other commercial and agricultural purposes. Southern Steel Supplies’ SHS products are available in a range of heights and thicknesses and are manufactured in accordance with the requirements of Australian Standard AS/NZS 1163:2009.

Structural tube pipe SHS line drawing with details

Manufactured in accordance with the requirements of Australian Standard AS/NZS 1163:2009 in Grade C350.
Grade C450 and L0 available on request.

DOWNLOAD REFERENCE GUIDE

SIZE (BXB) MM	NOM.THICK (T) MM	NOM.LINEAR MASS KG/M	SURFACE AREA M2/M PER PACK	PAINTED PER PACK	SURFACE FINISH PAINTED	SURFACE FINISH GALVANISED
6500 MM LENGTHS STANDARD
20x20	1.6	0.87	0.0745	100	*	*
	2.0	1.05	0.0800	100	*	*
25x25	1.6	1.12	0.0945	100	*	*
	2.0	1.36	0.0931	100	*	*
	2.5	1.64	0.0914	100	*	*
	3.0	1.89	0.0897	100	*	*
8000MM LENGTHS STANDARD
30x30	1.6	1.38	0.115	100	*	*
	2.0	1.68	0.113	100	*	*
	2.5	2.03	0.111	100	*	*
	3.0	2.36	0.110	64	*	*
35x35	1.6	1.63	0.135	100	*	*
	2.0	1.99	0.133	100	*	*
	2.5	2.42	0.131	64	*	*
	3.0	2.83	0.130	64	*	*
40x40	1.6	1.88	0.155	81	*	*
	2.0	2.31	0.153	81	*	*
	2.5	2.82	0.151	64	*	*
	3.0	3.30	0.150	64	*	*
	4.0	4.09	0.143	49	*	*
50x50	1.6	2.38	0.195	64	*	*
	2.0	2.93	0.193	64	*	*
	2.5	3.60	0.191	49	*	*
	3.0	4.25	0.190	49	*	*
	4.0	5.35	0.183	36	*	*

SIZE (BXB) MM	NOM.THICK (T) MM	NOM.LINEAR MASS KG/M	SURFACE AREA M2/M PER PACK	8M LENGTHS PER PACK	12M LENGTHS PER PACK	SURFACE FINISH PAINTED	SURFACE FINISH GALVANISED
50x50	5.0	6.39	0.179	30	-	*	*
	6.0	7.32	0.174	25	-	OILED
65x65	1.6	3.13	0.255	49	-		*
	2.0	3.88	0.253	42	-	*	*
	2.5	4.78	0.251	42	-	*	*
	3.0	5.66	0.250	36	-	*	*
	4.0	7.23	0.243	30	-	*	*
	5.0	8.75	0.239	25	-	*	*
	6.0	10.20	0.234	20	-	*
75x75	2.0	4.50	0.293	36	-	*	*
	2.5	5.56	0.291	30	-	*	*
	3.0	6.60	0.290	30	25	*	*
	3.5	7.53	0.285	25	-	*	*
	4.0	8.49	0.283	25	15	*	*
	5.0	10.30	0.279	20	16	*	*
	6.0	12.00	0.274	16	12	*	*
89x89	2.0	5.38	0.348	20	-	*	*
	3.5	9.07	0.341	20	16	*	*
	5.0	12.50	0.334	16	12	*	*
	6.0	14.70	0.330	12	9	*	*
100x100	2.0	6.07	0.393	20	-	*	*
	3.0	8.96	0.390	20	16	*	*
	4.0	11.60	0.383	16	12	*	*
	5.0	14.20	0.379	12	9	*	*
	6.0	16.70	0.374	12	9	*	*
	9.0	23.50	0.361	9	6	*
125x125	4.0	14.80	0.483	12	9	*	*
	5.0	18.20	0.479	12	9	*	*
	6.0	21.40	0.474	9	6	*
	9.0	30.60	0.461	8	4	*
150x150	5.0	22.10	0.579	9	6	*
	6.0	26.20	0.574	6	6	*
	9.0	37.70	0.561	6	4	*
200x200	5.0	29.90	0.779	6	4	*
	6.0	35.60	0.774	6	4	*
	9.0	51.80	0.761	4	2	*
	12.5	69.40	0.768	-	1	*
	16.0	85.50	0.759	-	1	*
250x250	6.0	45.00	0.974	4	2	*
	9.0	65.90	0.961	2	2	*
	12.5	89.00	0.968	-	1	*
	16.0	111.00	0.959	-	1	*
300x300	10.0	88.40	1.170	-	1	*
	12.5	109.00	1.170	-	1	*
	16.0	136.00	1.160	-	1	*
350x350	10.0	104.00	1.370	-	1	*
	12.5	128.00	1.370	-	1	*
	16.0	161.00	1.360	-	1	*
400x400	10.0	120.00	1.570	-	1	*
	12.5	148.00	1.570	-	1	*
	16.0	186.00	1.560	-	1	*

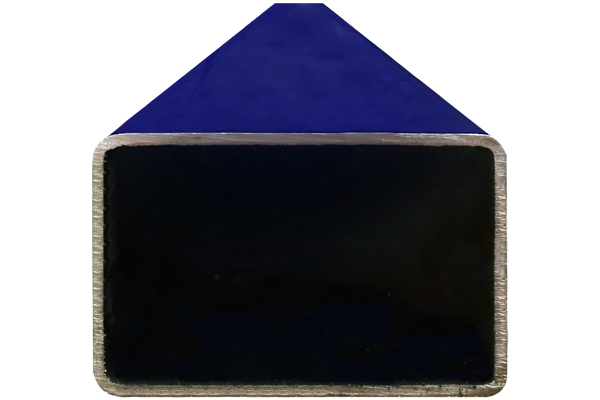

Southern Steel Supplies - Blue Steel Rectangular Hollow Sections

Rectangular Hollow Sections - RHS

Painted Rectangular Hollow Sections (RHS) are high-strength cold-formed hollow steel rectangle sections that are primer painted for protection during storage and handling. RHS is often used when strength and functionality is essential in structural and mechanical applications, and can be used for various applications such as in the manufacturing of frames, residential projects for gates and posts, as well as other commercial and agricultural purposes. Southern Steel Supplies’ RHS products are available in a range of heights and thicknesses and are manufactured in accordance with the requirements of Australian Standard AS/NZS 1163:2009.

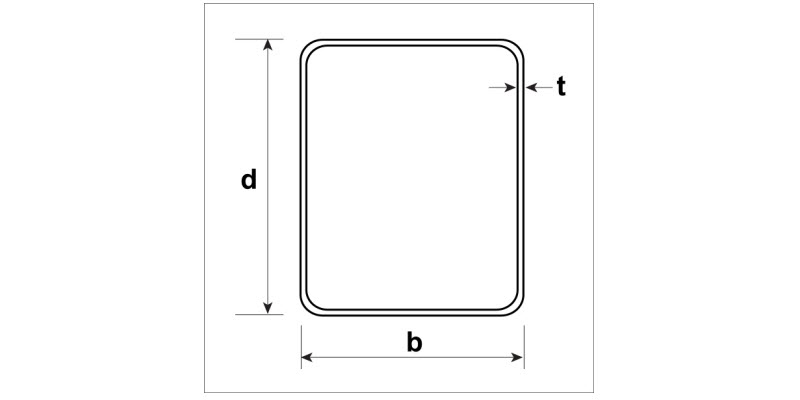

Structural tube pipe RHS line drawing with details

Manufactured in accordance with the requirements of Australian Standard AS/NZS 1163:2009 in Grade C350.
Grade C450 and L0 available on request.

DOWNLOAD REFERENCE GUIDE

SIZE (BXB) MM	NOM.THICK (T) MM	NOM.LINEAR MASS KG/M	SURFACE AREA M2/M PER PACK	8M LENGTHS PER PACK	12M LENGTHS PER PACK	SURFACE FINISH PAINTED	SURFACE FINISH GALVANISED
50x25	1.6	1.75	0.145	96	-	*	*
	2.0	2.15	0.143	96	-	*	*
	2.5	2.62	0.141	72	-	*	*
	3.0	3.07	0.140	60	-	*	*
65x35	2.0	2.93	0.193	54	-	*	*
	2.5	3.60	0.191	54	-	*	*
	3.0	4.25	0.190	45	-	*	*
	4.0	5.35	0.183	35	-	*	*
75x25	1.6	2.38	0.195	65	-	*	*
	2.0	2.9	0.193	65	-	*	*
	2.5	3.60	0.191	48	-	*	*
75x50	1.6	3.01	0.245	54	54	*	*
	2.0	3.72	0.243	42	42	*	*
	2.5	4.58	0.241	42	24	*	*
	3.0	5.42	0.240	35	-	*	*
	4.0	6.92	0.233	28	-	*	*
	5.0	8.35	0.229	24	20	*	*
	6.0	9.67	0.224	20	-	*	*
100x50	1.6	3.64	0.295	32	32	*	*
	2.0	4.50	0.293	32	-	*	*
	2.5	5.56	0.291	32	24	*	*
	3.0	6.60	0.290	32	24	*	*
	3.5	7.53	0.285	24	18	*	*
	4.0	8.49	0.283	24	18	*	*
	5.0	10.30	0.279	18	15	*	*
	6.0	12.00	0.274	15	-	*	*
102x76	3.5	9.07	0.341	12	-	*
	5.0	12.50	0.335	12	-	*
	6.0	14.70	0.330	12	-	*
125x75	2.0	6.07	0.393	24	-		*
	2.5	7.53	0.391	20	20		*
	3.0	8.96	0.390	20	15	*	*
	4.0	11.60	0.383	15	15	*	*
	5.0	14.20	0.379	15	12	*	*
	6.0	16.70	0.374	12	6	*	*
150x50	2.0	6.07	0.393	21	21	*	*
	2.5	7.53	0.391	21	-	*	*
	3.0	8.96	0.390	21	15	*	*
	4.0	11.60	0.383	15	15	*	*
	5.0	14.20	0.379	15	9	*	*
	6.0	16.70	0.374	15	9	*	*
152x76	5.0	16.50	0.435	8	8	*
	6.0	19.40	0.430	8	-	*
150x100	4.0	14.80	0.483	12	9	*	*
	5.0	18.20	0.479	12	8	*	*
	6.0	21.40	0.474	9	6	*
	9.0	30.60	0.461	6	4	*
200x100	4.0	17.90	0.583	8	6	*
	5.0	22.10	0.579	8	6	*
	6.0	26.20	0.574	8	4	*
	9.0	37.70	0.561	6	4	*
250x150	5.0	29.90	0.779	6	4	*
	6.0	35.60	0.774	6	4	*
	9.0	51.80	0.761	4	2	*
	12.5	69.40	0.768	-	1	*
	16.0	85.50	0.759	-	1	*
300x200	6.0	45.00	0.985	2	1	*
	8.0	51.10	0.979	2	1	*
	9.0	65.90	0.976	-	2	*
	10.0	72.70	0.974	1	1	*
	12.5	89.00	0.968	-	1	*
	16.0	111.00	0.959	-	1	*
350x250	8.0	71.58	1.077	-	1	*
	10.0	88.40	1.071	-	1	*
	12.5	109.00	1.065	-	1	*
	16.0	136.00	1.055	-	1	*
400x200	8.0	71.60	1.180	-	2	*
	10.0	88.40	1.170	-	1	*
	12.5	109.00	1.170	-	1	*
	16.0	136.00	1.160	-	1	*
400x300	12.5	128.00	1.370	-	1	*
	16.0	161.00	1.370	-	1	*

Southern Steel Supplies - Steel Circular Hollow Section

Circular Hollow Section - CHS

Cold-formed Circular Hollow Section (CHS) steel pipes are long, hollow tubes available in a variety of specifications and dimensions. These sections are versatile and can be used in many different applications including building construction, structural and mechanical. The main benefit of CHS’ is its strength. Steel pipes don’t crack under most impacts and can operate under high pressure. Under abnormal loads, CHS’ will bend, rather than break. Southern Steel Supplies’ Circular Hollow Sections are manufactured in accordance with the requirements of Australian Standard AS/NZS 1074:1991.

Structural tube pipe CHS line drawings with details

Manufactured in accordance with the requirements of Australian Standard AS/NZS 1074:1991.

DOWNLOAD REFERENCE GUIDE

SIZE MM	CLASS	OD (Ø) MM	NOM.THICK (T) MM	SURFACE AREA M2/M	NOM.LINEAR MASS BLACK KG/M	NOM.LINEAR MASS GALVANISED KG/M	QUANTITY PER PACK
20	M	26.9	2.6	0.085	1.56	1.60	127
25	XL	33.7	2.0	0.106	1.56	1.62	91
	L	33.7	2.6	0.106	1.99	2.05	91
	M	33.7	3.2	0.106	2.41	2.46	91
	H	33.7	4.0	0.106	2.94	2.99	91
32	XL	42.4	2.0	0.133	1.99	2.07	61
	L	42.4	2.6	0.133	2.55	2.63	61
	M	42.4	3.2	0.133	3.10	3.17	61
	H	42.4	4.0	0.133	3.80	3.86	61
40	XL	48.3	2.3	0.152	2.61	2.70	61
	L	48.3	2.9	0.152	3.25	3.30	61
	M	48.3	3.2	0.152	3.57	3.64	61
	H	48.3	4.0	0.152	4.38	4.45	61
	XH	48.3	5.4	0.152	5.71	-	61
50	XL	60.3	2.3	0.189	3.29	3.40	37
	L	60.3	2.9	0.189	4.11	4.21	37
	M	60.3	3.6	0.189	5.03	5.14	37
	H	60.3	4.5	0.189	6.19	6.33	37
	XH	60.3	5.4	0.189	7.31	-	37
65	XL	76.1	2.3	0.239	4.19	4.32	37
	L	76.1	3.2	0.239	5.75	5.89	37
	M	76.1	3.6	0.239	6.43	6.57	37
	H	76.1	4.5	0.239	7.93	8.08	37
80	XL	88.9	2.6	0.279	5.53	5.70	19
	L	88.9	3.2	0.279	6.76	6.93	19
	M	88.9	4.0	0.279	8.37	8.54	19
	H	88.9	5.0	0.279	10.30	10.6	19
	XH	88.9	100	0.279	12.10	-	19
90	XL	101.6	2.6	0.319	6.35	-	19
	L	101.6	3.2	0.319	7.77	7.95	19
	M	101.6	4.0	0.319	9.63	9.81	19
	H	101.6	5.0	0.319	11.90	-	19
100	XL	114.3	3.2	0.359	8.77	-	19
	L	114.3	3.6	0.359	9.83	10.00	19
	M	114.3	4.5	0.359	12.20	12.4	19
	H	114.3	5.4	0.359	14.50	14.70	19
125	XL	139.7	3.0	0.439	10.10	-	10
	L	139.7	3.5	0.439	11.80	12.00	10
	M	139.7	5.0	0.439	16.60	16.90	10
	H	139.7	5.4	0.439	17.90	-	10
150	XL	165.1	3.0	0.519	12.00	-	10
	L	165.1	3.5	0.519	13.90	14.30	10
	M	165.1	5.0	0.519	19.70	20.00	10
	H	165.1	5.4	0.519	21.30	-	10

Firepipe

Fire Pipe is often made from carbon steel or iron and is used to carry water/liquid to fire safety/firefighting equipment. These pipes are designed to withstand rusting and corrosion, extreme temperatures and high pressure. Southern Steel Supplies’ Fire Pipe steel product is available in a range of wall thicknesses and diameters and is manufactured in accordance with the requirements of Australian Standard AS/NZS 1074:1991.

Manufactured in accordance with the requirements of Australian Standard AS/NZS 1074:1991.

DOWNLOAD REFERENCE GUIDE

NB MM	CLASS	OD (Ø) MM	NOM.THICK (T) MM	SURFACE AREA M2/M	NOM.LINEARMASS KG/M	QUANTITY PER PACK	PE	PE	PE
25	M	33.7	3.2	0.106	2.41	91	*	*	*
32	M	42.4	3.2	0.133	3.10	61	*	*	*
40	M	48.3	3.2	0.152	3.57	61	*	*	*
50	M	60.3	3.6	0.189	5.03	37	*	*	*
65	M	76.1	3.6	0.239	6.43	37	*
80	M	88.9	4.0	0.279	8.37	19	*
100	M	114.3	4.5	0.359	12.2	19	*
150	M	165.1	5.0	0.519	19.7	10	*

Large Structural Pipe

Southern Steel Supplies’ Large Structural Pipes are available in a variety of sizes, grades and wall thicknesses, and are typically available in 9m and 12m lengths. The Large Structural Steel Pipe range is well-suited to a variety of applications including wind-resistant sign poles, stable caissons, irrigation works, structural piling, creek crossings and serve as bracings for jack and boring installations. The versatile large diameter pipes showcase good corrosion resistance and enhanced adhesion properties and are manufactured in accordance with the requirements of Australian Standard AS/NZS 1163:2009.

Manufactured in accordance with the requirements of Australian Standard AS/NZS 1163:2009 in Grade C350.
Typically supplied in 9m & 12m lengths.

DOWNLOAD REFERENCE GUIDE

NB MM	OD (Ø) MM	NOM.THICK (T) MM	SURFACE AREA M2/M	NOM.LINEAR MASS KG/M
65	76.1	4.00	0.239	7.13
65	76.1	5.00	0.239	8.77
80	88.9	5.50	0.279	11.31
100	114.3	4.80	0.359	12.96
100	114.3	6.00	0.359	16.02
125	114.3	4.80	0.444	16.16
125	114.3	6.60	0.444	21.99
150	168.3	4.80	0.528	19.35
150	168.3	6.40	0.528	25.55
150	168.3	7.10	0.528	28.22
150	168.3	11.0	0.528	42.67
200	219.1	4.80	0.688	25.37
200	219.1	6.40	0.688	33.57
200	219.1	8.20	0.688	42.60
200	219.1	12.7	0.688	64.64
250	273.1	4.80	0.858	31.76
250	273.1	6.40	0.858	42.09
250	273.1	9.27	0.858	60.50
250	273.1	12.7	0.858	81.55
300	323.9	6.40	1.017	50.11
300	323.9	9.50	1.017	73.66
300	323.9	12.7	1.017	97.50
350	355.6	6.40	1.117	55.10
350	355.6	9.50	1.117	81.10
350	355.6	12.7	1.117	107.40
400	406.4	6.40	1.276	63.13
400	406.4	9.50	1.276	92.98
400	406.4	12.7	1.276	123.30
450	457.0	6.40	1.435	71.12
450	457.0	9.50	1.435	104.84
450	457.0	12.7	1.435	139.30
500	508.0	6.40	1.595	79.20
500	508.0	9.50	1.595	116.79
500	508.0	12.7	1.595	155.12
600	610.0	6.40	1.915	95.26
600	610.0	9.50	1.915	140.68
600	610.0	12.7	1.915	187.06
600	610.0	16.0	1.915	232.94
650	660.0	12.7	2.072	202.74
700	711.0	9.53	2.233	164.34
700	711.0	12.7	2.233	218.71
700	711.0	15.9	2.233	272.56
750	762.0	9.50	2.393	176.84
750	762.0	12.7	2.393	234.68
750	762.0	15.9	2.393	292.54
750	762.0	19.05	2.393	348.99
800	813.0	9.50	2.553	188.82
800	813.0	12.7	2.553	250.64
800	813.0	16.0	2.553	314.39
900	914.0	9.50	2.870	211.91
900	914.0	12.7	2.870	282.29
900	914.0	15.9	2.870	352.16
1050	1067.0	9.53	3.350	248.52
1050	1067.0	12.7	3.350	330.19
